DESCRIPTION

Basic Info

Model NO.	HYSM-16
Cabinet Color	Black
Usage	Home TV, Portable TV, Indoor or Outdoor, Hotel TV
Transport Package	30mm Thickness Honeycomb Box+Pallet
Specification	114X80X15 cm
Trademark	HONGYI
Origin	China
HS Code	8401409020
Production Capacity	2000 Piece/Pieces Per Month

Product Description

TV Studio 55inch hd 3*3 LCD video wall horizontal vertical wall mount lcd advertising player TV screenTV-Hot sale real 4K UHD 55 inch led tv smart television with android&wifi tempered glass smart tvOn Line Spring Festival OEM UHD Screen 4K LED Television Smart Curved TVHOT 32 inches OLED television 4K UHD smart TV 32 inch android led withLarge Screen UHD 50 55 65 inch Televisores Smart TV 4K, Golden Cabinet Television LED TV, A Class Televisions

22/24/32/39/40/42/43/49/50/55/65 inch led smart tv television lcd tv smart television new model

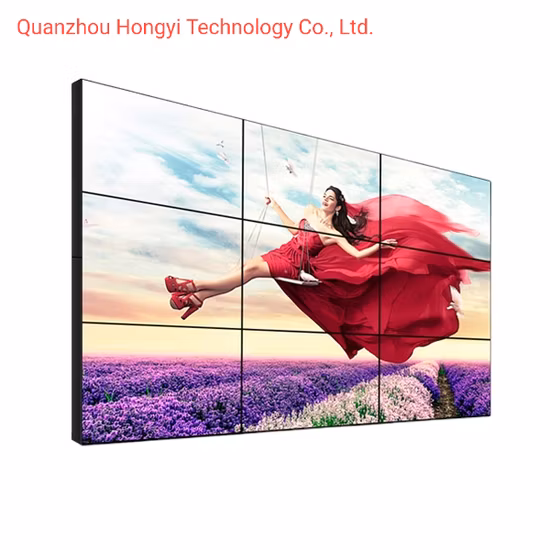

TV Studio RK3288 player box support 4k 55inch HD 3*3 LCD video wall Horizontal Vertical Advertising player TV Screen used for speech meeting room

Specification:

Model	HYSM-16
Panel brand	LG or Sumsung
Unit dimensions	55"
Panel type	TFT-LCD
Brightness	800cd/ m2
Contrast	1200:1
Optimal resolution	1980×1080
Aspect ratio	16:9
Display color	16.7M
Response time	8ms
Pixel pitch	0.53025 (H) ×0.53025mm (V)
Viewing Angle	178º (H)/178º(V)
Lamp life	50000 (minimum) hours
Operating temperature	0~50ºC
Humidity	10%~80%
Surface treatment	Matte (Haze 5.5%),
Display area	1214×684mm (horizontal*vertical)
Dimensions	1215.2× 686 mm (horizontal*vertical)
Dimensions	58.53 (Max.) mm (thickness)
Physical seam	5.5mm
Basic functions	M rows × N columns, multi-unit splicing, full-screen display, split-screen display, any combination display (multi-channel signal), PIP signal cross screen roaming, superimposing and zooming
Image splicing controller (optional)	1. Multi-layer cross screen roaming and superimposing, scaling of all windows in any proportion and any size in full range; 2. Support intelligent split of single, four, six, nine and sixteen screens, built-in HD mixing matrix
Input and output
High definition multimedia interface	HDMI 1-channel
Digital video interface	DVI-D 1-channel
D-Sub interface	VGA 1-channel
Composite video input	BNC 2-channel
Composite video output	BNC 2-channel
Control interface	RJ45 (RS-232 protocol)
Video
Video format	PAL/NTSC/SECAM
Compatible input	480P, 576P, 720P, 1080P
3D noise reduction	Yes
Video noise reduction	Yes
Power supply
Voltage input	AC100V~240V 50/60HZ
Power loss	≤220W
Standby power	≤3W
Mounting
Wall-mounted, floor-standing enclosure (optional)

Packaging & Delivery

Packaging Details :standard export packing
Port :GUANGZHOU
Lead Time:

Quantity(Pieces)	1 - 99	>99
Est. Time(days)	15	To be negotiated

A) How could I get a sample? Before we received the first order, please afford the sample cost and express fee. We will return the sample cost back to you within your first order.B) Sample logistics? Door to door or domestic handover both okC) Whether you could make our brand on your products? Yes. We can print your Logo on both the products and the packages if you can meet our MOQ.D) Whether you could make your products by our color? Yes, The color of products can be customized if you can meet our MOQ.E) How to guarantee the quality of your products? 1) Strict detection during production. 2) Strict sampling inspection on products before shipment and intact product packaging ensured.
